Construction of Reversible Motor
These are capacitor-start, capacitor-run, squirrel cage single phase & three phase motors. The RPM available are 1440/2880 and with gearbox, speed can be very low. Depending upon requirement for the connection, motors have lead wires or terminal Box.
These are actually Induction Motors fitted with continuously applied Internal Brake to minimize overrun after power supply is cut off.
Suitable for short duty operation. These motors have lesser overrun or quick reversal of direction of rotation. The direction of rotation can be reversed easily.

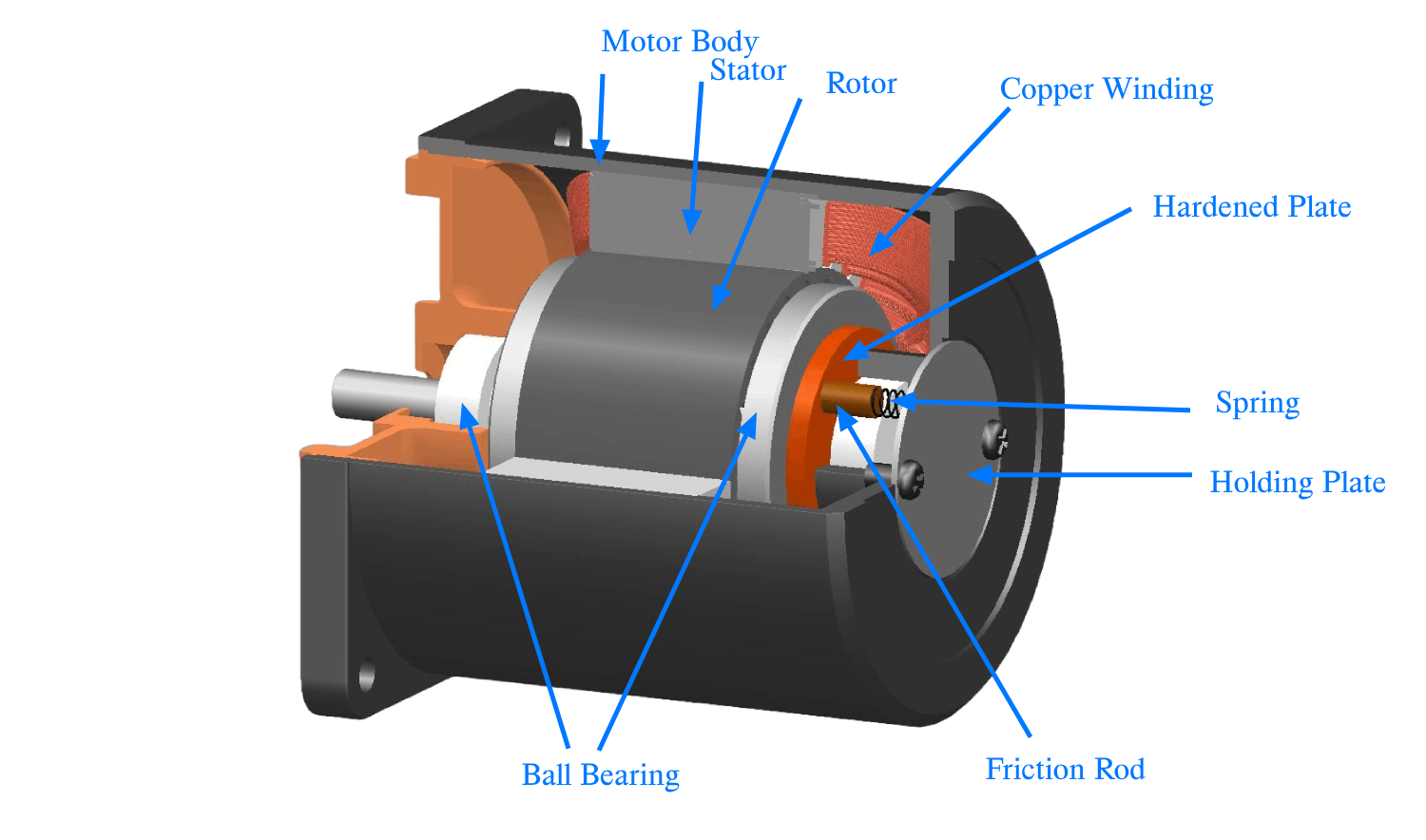

25 Watt Reversible Motor With Round Shaft

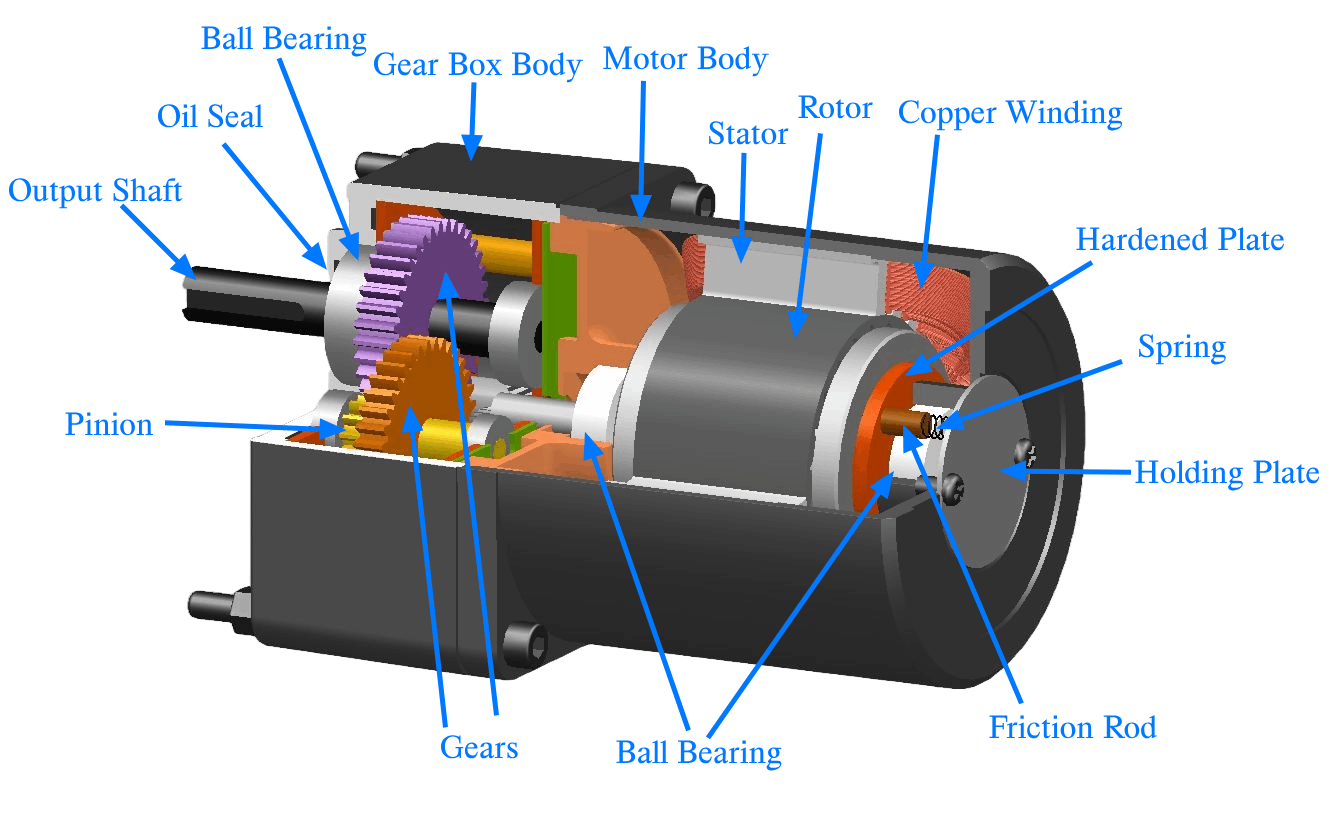

25 Watt Reversible Motor With Gear Box
Material Construction:
| Motor Body, Gear Box Body | Aluminium |
| Disc | Aluminium |
| Fan Cover | Sheet Metal |
| Cooling Fan | Nylon |
| Shaft, Output Shaft | Steel Alloy |
| Base Plate | Steel Metal |
| Pinion, Gear | Steel Alloy, Teeth Hardened |
| Friction Rod | PTFE |
Motor Coding:
Gearbox Coding:
General Specifications:
| Item | Specification |
|---|---|
| Insulation Resistance | 100 MΩ or more when 500 VDC is applied between the winding to winding and the motor body. |
| High Voltage Test | 1.5 kVAC ( 2kVAC for three phase 415 VAC) at 50 Hz or 60 Hz between the winding to winding and the motor body for 1 minute. |
| Temperature Rise | Measured up to 80°C or less using the resistance change method after rated operation under normal ambient temperature and humidity. |
| Insulation Class | F Class (155°C) |
| Operating Ambient Temperature | -10 ~ +40°C (non freezing) |
| Operating Ambient Humidity | 85% or less (Non-condensing) |
| Degree of Protection | Lead Wire Type: IP 20 Terminal Box Type: IP 54 |
