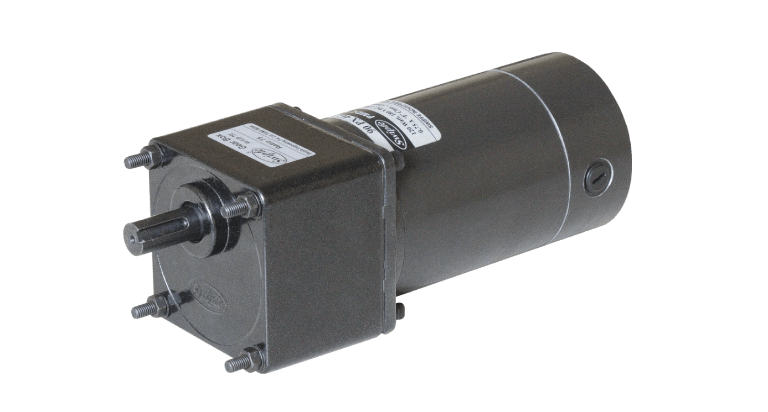

PMDC Motor
120 Watt
Square Flange
90mm x 90mm
Replaceable Carbon Brush Permanent Magnet Motor.
Rotates in Clockwise or Counter Clockwise Direction.
Continuous Rating, Lead Wires for Connection.
Motor Specifications:
| Model | Supply | Current A |
Rated Torque Nm |
Rated Speed RPM |
|---|---|---|---|---|
| 5PW4120 | 24V | 7.0 | 0.61 | 1800 |
| 5PX4120 | 180V | 0.85 | 0.61 | 1800 |
Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom
Gear Motor Torque Table:
The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM
50Hz
Unit : N.m
| RPM | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Output Torque | 1.5 | 1.8 | 2.5 | 3.0 | 3.8 | 4.5 | 5.7 | 6.8 | 8.5 | 10.3 | 12.3 | 14.8 | 18.5 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
Motor Dimensions:
Motor with Gearbox
Motor Round Shaft
Key & Keyway
Max. Weight:
Motor - 2.8 kg
Gear Box - 1.75 kg
Power Supply Connection:
To rotate the motor in clockwise direction, connect red wire to positive supply and black wire
to negative supply.
To reverse the direction interchange the wires.
