Torque Motor
4S
Square Flange
80mm x 80mm
Continuous Duty
Gear box Ratios:
The maximum permissible torque is 8 Nm
50Hz
Unit : N.m
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
|---|
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
Characteristics, specifications and dimensions are subject to change without notice.

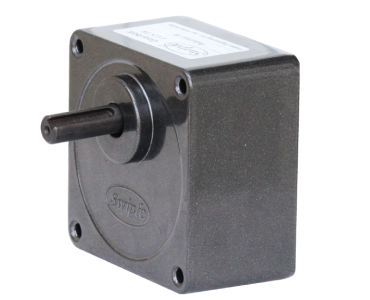

Gear Box Dimensions:

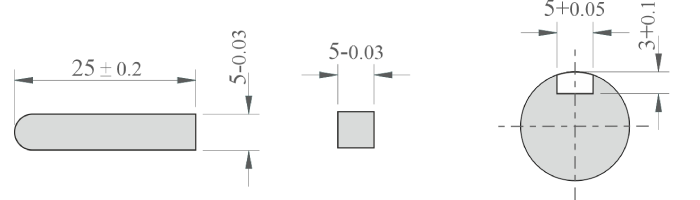

Key & Keyway
Max. Weight:
Motor - 2.2 kg
Gear Box - 1.5 kg
