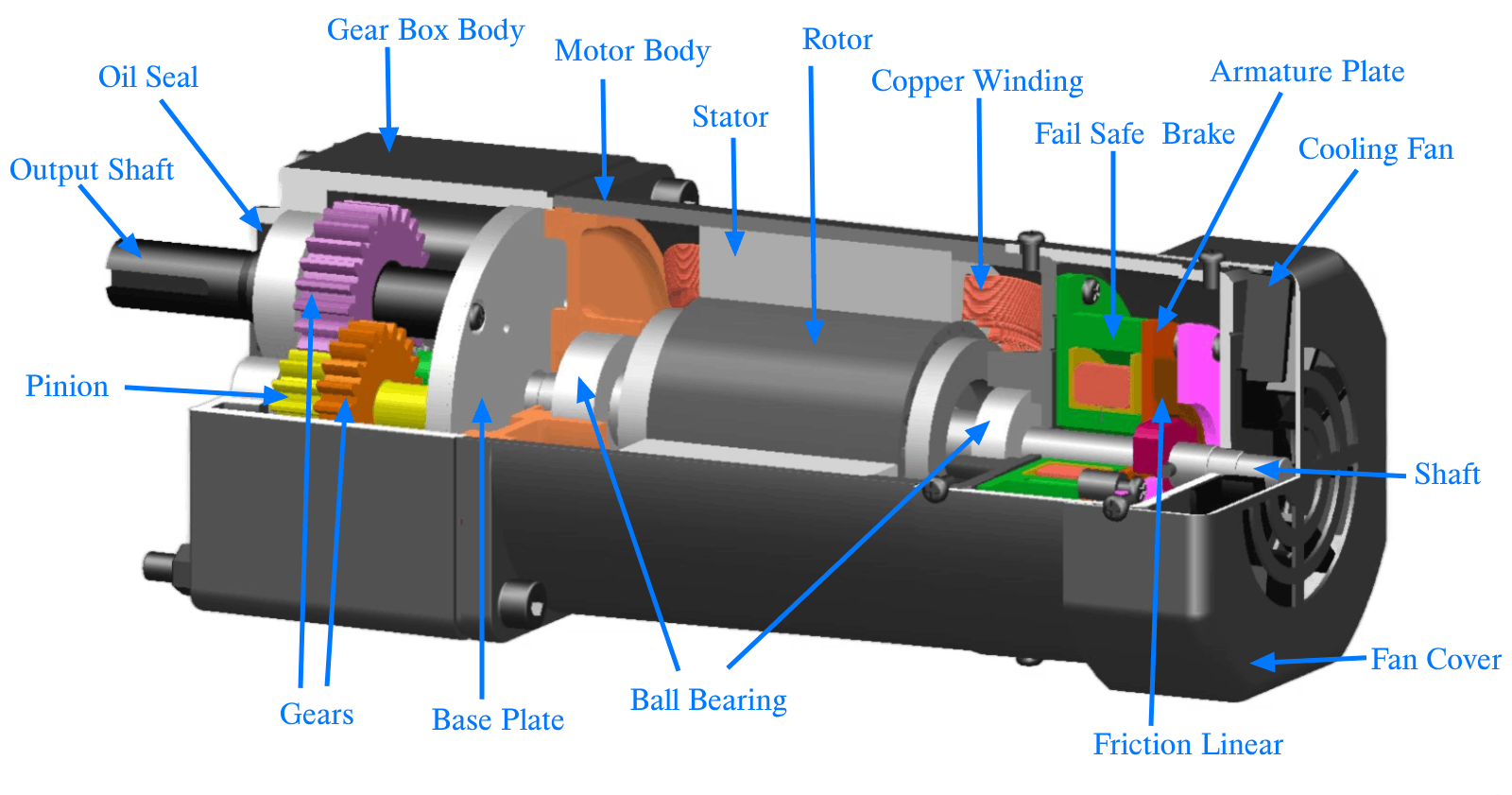

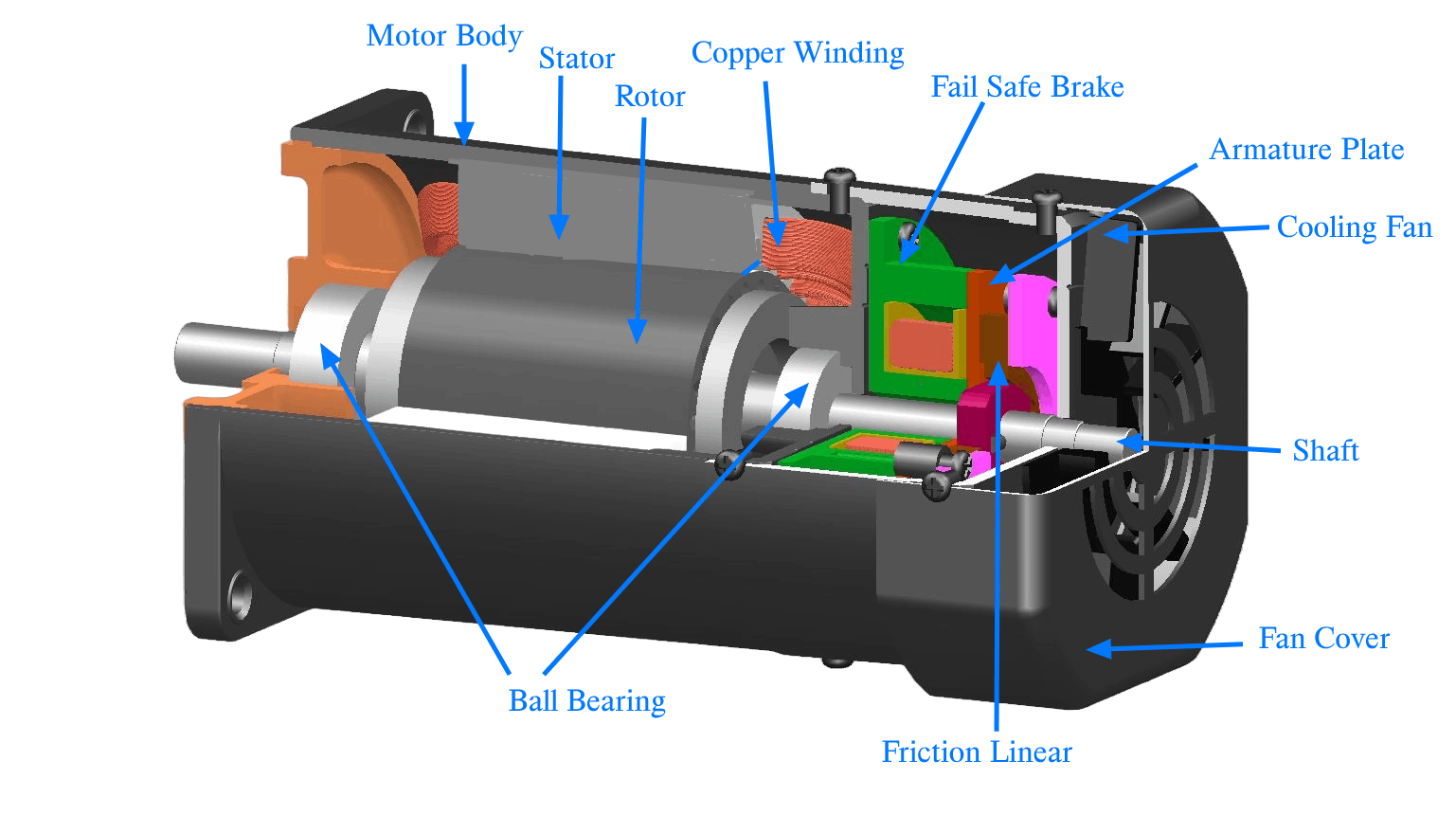

Construction of EM Brake Motor
These are electromagnetic fail safe (power off activated) brake fitted capacitor-start, capacitor-run, squirrel cage single phase & three phase motor.
The RPM available are 1440/2880 and with gearbox, speed can be very low. Depending upon requirement for the connection, motors have lead wires or terminal box.
These are actually Induction motor fitted with fail safe electromagnetic brake to hold the motor shaft after power supply is cut off. Suitable for continuous operation with frequent start stop, minimum overrun & load holding.
90 Watt EM Brake Motor With Round Shaft
90 Watt EM Brake Motor With Round Shaft
Material Construction:
| Motor Body, Gear Box Body | Aluminium |
| Disc | Aluminium |
| Fan Cover | Sheet Metal |
| Cooling Fan | Nylon |
| Shaft, Output Shaft | Steel Alloy |
| Base Plate | Steel Metal |
| Pinion, Gear | Steel Alloy, Teeth Hardened |
| Fail Safe Brake | Steel Alloy |
| Armature Plate | Steel Alloy, Hardened |
Motor Coding:
Gearbox Coding:
General Specifications:
| Item | Specification |
|---|---|
| Insulation Resistance | 100 MΩ or more when 500 VDC is applied between the winding and the motor body. |
| High Voltage Test | 1.5 kVAC ( 2kVAC for three phase 415 VAC) at 50 Hz or 60 Hz between the winding to winding and the motor body for 1 minute. |
| Temperature Rise | Measured up to 80°C or less using the resistance change method after rated operation under normal ambient temperature and humidity. |
| Insulation Class | F Class (155°C) |
| Operating Ambient Temperature | -10 ~ +40°C (non freezing) |
| Operating Ambient Humidity | 85% or less (Non-condensing) |
| Degree of Protection | Lead Wire Type: IP 20 Terminal Box Type: IP 54 |
| Load Holding Capacity | Approximate load holding capacity is 1 Nm when power is cut off. |
